Cisco 300-610 exam is intended for network architects, network engineers, and data center engineers who are responsible for designing enterprise data center infrastructure. 300-610 exam tests the candidate's knowledge of data center infrastructure design principles, including high availability, scalability, and security. Candidates who pass the exam will demonstrate their ability to design and implement data center infrastructure solutions using Cisco technologies. Designing Cisco Data Center Infrastructure certification is valid for three years, after which candidates must recertify to maintain their certification status.
Cisco 300-610 exam is a challenging yet rewarding certification exam that can help IT professionals advance their careers in data center technologies. By passing 300-610 exam, candidates can validate their knowledge and skills in designing data center infrastructure using Cisco technologies, and demonstrate their ability to meet the needs of their organizations. With the right preparation and dedication, anyone can pass 300-610 exam and achieve their career goals in the field of data center infrastructure design.
NEW QUESTION # 132
Which technology enables Layer 2 extension between remote data center sites?
- A. FCIP
- B. DMVPN
- C. GRE
- D. OTV
Answer: D
Explanation:
https://netcraftsmen.com/spanning-layer-2-between-data-centers/
NEW QUESTION # 133

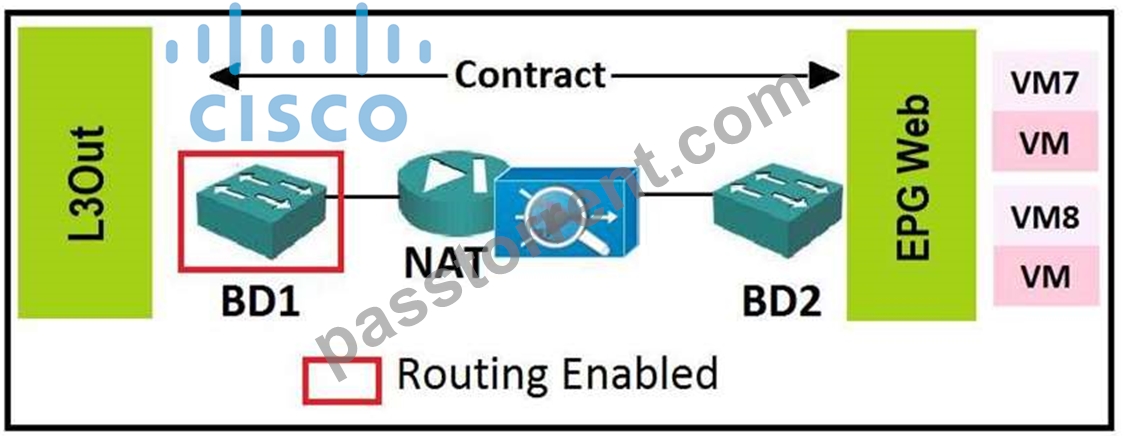

Refer to the exhibit.
What must be the default gateway of the servers in EPG Web?
- A. NAT appliance
- B. subnet address of BD2
- C. subnet address of L3Out
- D. subnet address of BD1
Answer: A
Explanation:
Section: Network Design
Explanation/Reference:
NEW QUESTION # 134

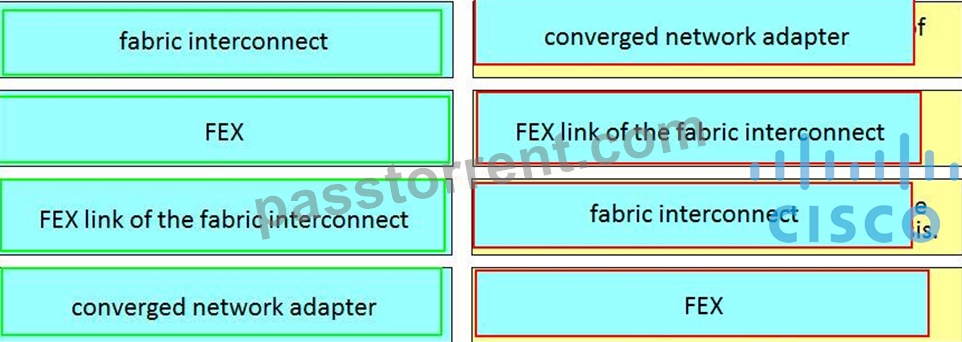

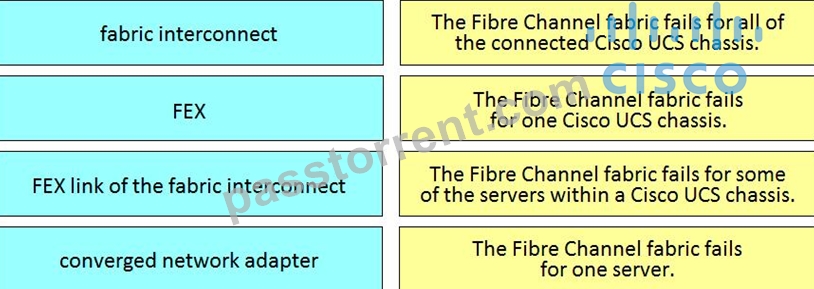

Drag and drop the components from the left onto the descriptions on the right that indicate what occurs to Fibre Channel fabric when that component fails.
Answer:
Explanation:
NEW QUESTION # 135

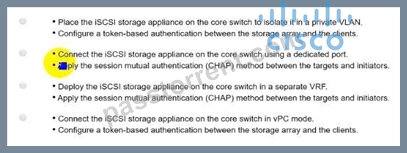

A company must integrate an iSCSI storage solution into its existing production environment.
The new iSCSI network must be accessible from a limited set of network segments.
The client devices follow a strict network security policy to access critical data from the storage array.
Which design steps must be used to meet these requirements?
- A. Option C
- B. Option D
- C. Option A
- D. Option B
Answer: A
NEW QUESTION # 136
A network engineer designs a Cisco Nexus data center network for a client-server farm using a pair of Nexus
9000 Series. Switches In a vPC setup. Each server connects with two interfaces to both Nexus switches. The Nexus switches must always initiate the negotiation with the server. Which feature should be used in this design to ensure traffic is forwarded from the server to the data center network?
- A. PAgP mode desirable
- B. LACP mode active
- C. PAgp mode auto
- D. LACP mode auto
Answer: B
Explanation:
Servers cannot support PAgP
NEW QUESTION # 137

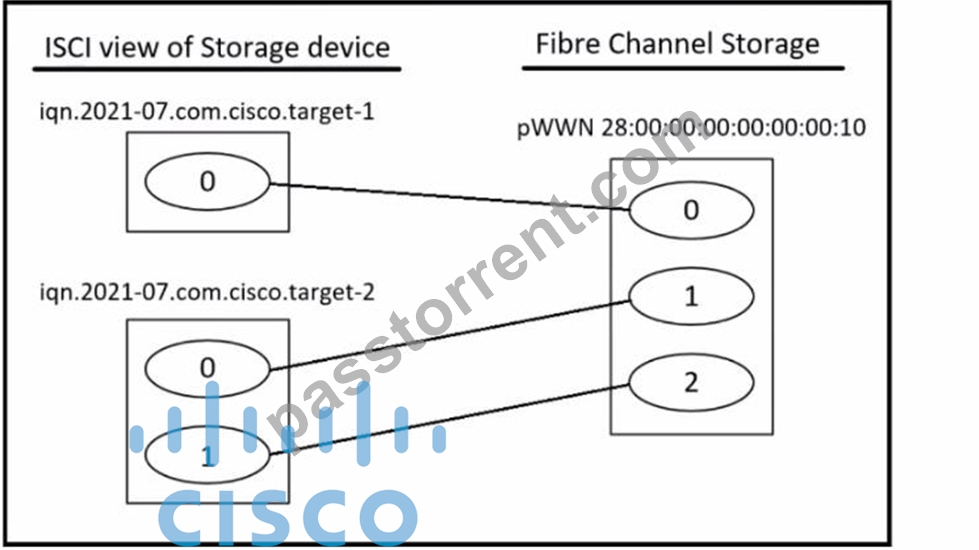

Refer to the exhibit.
Refer to the exhibit. An engineer working for a service provider with an employee ID: 4800:35-849 must perform the mapping of Fibre Channel LUN targets lo the indicated iSCSI virtual target.
Which configuration shows the requited mapping?
- A.
- B.
Answer: B
NEW QUESTION # 138
Which statement accurately describes a disjoint Layer 2 network topology in Cisco UCS infrastructure?
- A. Servers can use any virtual interface card.
- B. A VLAN can overlap across Layer 2 domains.
- C. A vNIC can communicate with only one Layer 2 domain.
- D. A Cisco UCS Fabric Interconnect must be configured in switching mode.
Answer: C
NEW QUESTION # 139
A cloud service provider is managing day-2 operations of over 200 blade servers installed in the Cisco UCS environment. This pool of network resources is providing virtual networks to their customers. To successfully operate this environment, frequent changes to vNICs and other operational policies are required across multiple UCS domains. The operations team must streamline these repetitive tasks.
Which orchestration tool must be used to meet this requirement?
- A. Cisco ACI Multisite Orchestrator
- B. Cisco UCS Manager
- C. Cisco UCS Director
- D. Cisco DAN Center
Answer: C
Explanation:
Cisco UCS Director is designed for orchestrating and automating the management of multiple Cisco UCS domains. It provides a single pane of glass to manage physical and virtual resources, including servers, policies, vNICs, and service profiles.
UCS Director enables workflow automation to streamline repetitive tasks across domains, which matches the requirement to handle frequent changes efficiently across over 200 blade servers.
It supports multi-domain management and offers role-based access and self-service portals, helpful for cloud service provider environments.
NEW QUESTION # 140

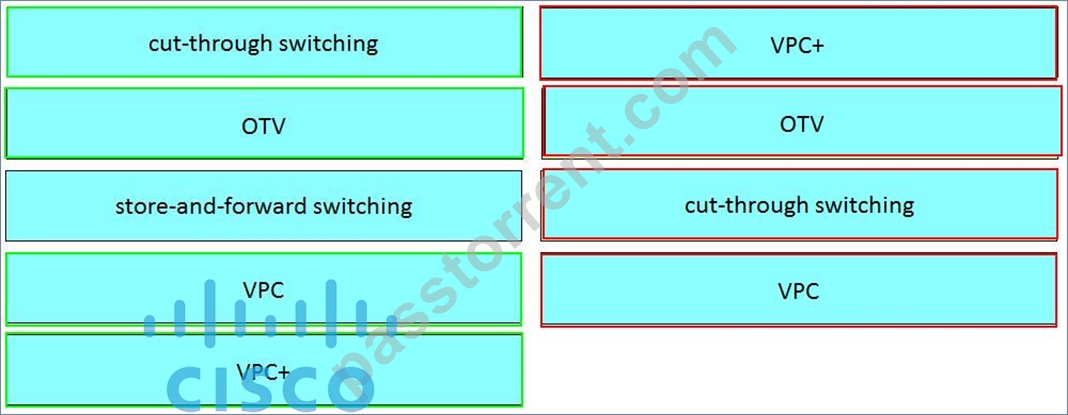

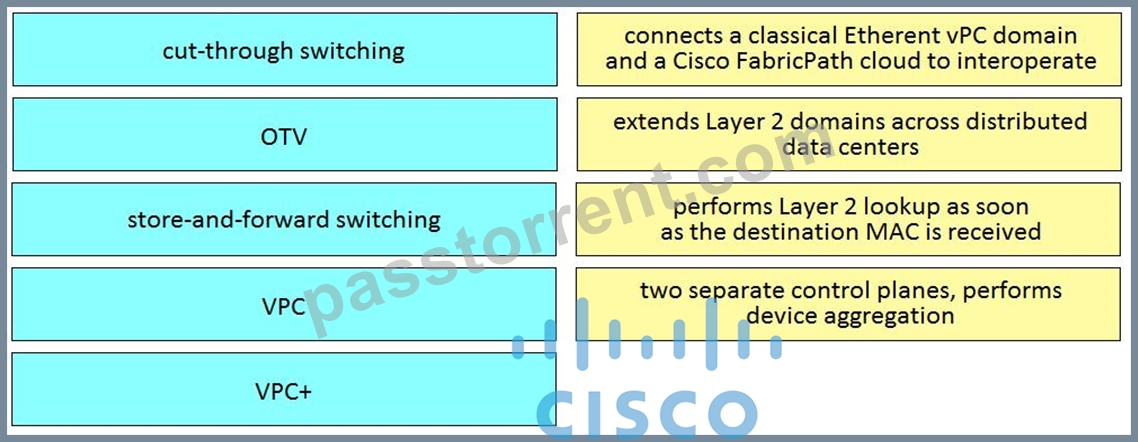

Drag and drop the data center technologies from the left onto the correct descriptions on the right. Not all technologies are used.
Answer:
Explanation:
NEW QUESTION # 141
An architect must automate routine tasks within a data center. The data center exclusively uses Cisco Nexus Series Switches. The networking team lacks proper programming knowledge and prefers an automation solution that leverages NXOS commands. Any configuration change must use HTTPS for transport due to a security compliance requirement.
Which solution must the architect choose?
- A. Python-API
- B. Chef
- C. Terraform
- D. NX-API
Answer: D
NEW QUESTION # 142
What is a design consideration when implementing FSPF?
- A. FSPF runs only on F Ports.
- B. FSPF runs on a per-chassis basis.
- C. Routes are based on the domain ID.
- D. Routes are based on the distance vector protocol.
Answer: C
NEW QUESTION # 143
An engineer is experiencing performance issues on a cisco UCS blade server. The B-series blade server contains four CPUs, most of which are idle. The engineer notices that the CPU is suffering from too many requests sent by the NIC. Additionally, the number of queues appears to be insufficient and only a single CPU is processing the network traffic. Which policy must be used to alleviate these issues?
- A. Dynamic vNIC connection
- B. Ethernet adapter
- C. LAN connectivity
- D. vNIC placement
Answer: B
Explanation:
Reference:
Ethernet adapter policy is the only policy that is having configuration that is related to CPU.
NEW QUESTION # 144
A database administrator experiences delay when performing storage replication between primary and secondary data centers. The data centers are located 20 kilometers apart and are connected using a 500 Mbps link. The deployment was implemented using an FCIP tunnel and a pair of Cisco MDS 9250 Series Switches. The network engineer decided to enable QoS to prioritize replication traffic.
Which QoS model must be used to resolve the performance issues?
- A. Resource Reservation Protocol
- B. weighted round robin
- C. strict priority queuing
- D. differentiated services
Answer: C
NEW QUESTION # 145
A customer needs to deploy a three-tier network architecture that will consist of web, app, and other business-critical applications. The solution will include Cisco UCS 6324 Fabric Interconnects managing B and C series servers. The fabric interconnects will be connected to the Cisco Nexus 7706 Series Switch for network access. A storage array will be directly connected to the UCS fabric interconnects.
Which UCS deployment type must be used to meet these requirements?
- A. UCS interconnect in Ethernet switching mode
UCS interconnect in Fibre Channel end-host mode
Fabric Interconnects uplinked to the Nexus device using an LACP port-channel in active mode - B. UCS interconnect in Ethernet end-host mode
UCS interconnect in Fibre Channel end-host mode
Fabric Interconnects uplinked to the Nexus device using an LACP port-channel in passive mode - C. UCS interconnect in Ethernet switching mode
UCS interconnect in Fibre Channel switching mode
Fabric Interconnects uplinked to the Nexus device using an LACP port-channel in passive mode - D. UCS interconnect in Ethernet end-host mode
UCS interconnect in Fibre Channel switching mode
Fabric Interconnects uplinked to the Nexus device using an LACP port-channel in active mode
Answer: D
Explanation:
FC must be in switching mode for Direct Attached Storage.
NEW QUESTION # 146
A midsize corporation with significant data-storage requirements is planning to deploy RFC 3720- based technology in its data center to provide efficient and reliable block-level storage access to servers. The corporation requires a robust solution with optimal performance, load-balancing, and fault tolerance. The solution must use multiple network paths to optimize bandwidth usage and provide redundancy. LACP has already been enabled on the data-center switches. Which two actions must be taken to accomplish the goal? (Choose two.)
- A. Disable jumbo frames on the data center switches.
- B. Configure the iSCSI initiators and targets to use a single network path.
- C. Implement MPIO with redundant network paths.
- D. Implement VLAN tagging in accordance with the IEEE 802.1Q standard to segregate iSCSI traffic from other data-center traffic.
- E. Configure iSCSI MPIO software on the hosts.
Answer: D,E
Explanation:
Configure iSCSI MPIO software on the hosts.
Enabling MPIO on each server ensures that the host OS can use multiple active iSCSI sessions in parallel, aggregating bandwidth across NICs and automatically failing over if one path drops.
Implement VLAN tagging in accordance with the IEEE 802.1Q standard to segregate iSCSI traffic from other data-center traffic.
Isolating iSCSI frames on their own VLAN prevents congestion from other workloads, improves security, and simplifies QoS policies - without this, even multi-path links can suffer from "noisy neighbor" issues.
NEW QUESTION # 147
An engineer designs a Cisco UCS solution that must provide guaranteed and deterministic bandwidth to a specific server in the environment. The solution must apply to network and storage traffic of C-Series and B-Series servers. Which solution should be included to meet these requirements?
- A. Pin the server ports of the service profile to dedicates uplink ports.
- B. Pin the vNlCs and vHBAs of the service profile to dedicated server ports
- C. Pin the vNICs and the vHBAs of the service profile to dedicated uplink ports.
- D. Pin the IOM ports of the service profile to dedicated server ports.
Answer: C

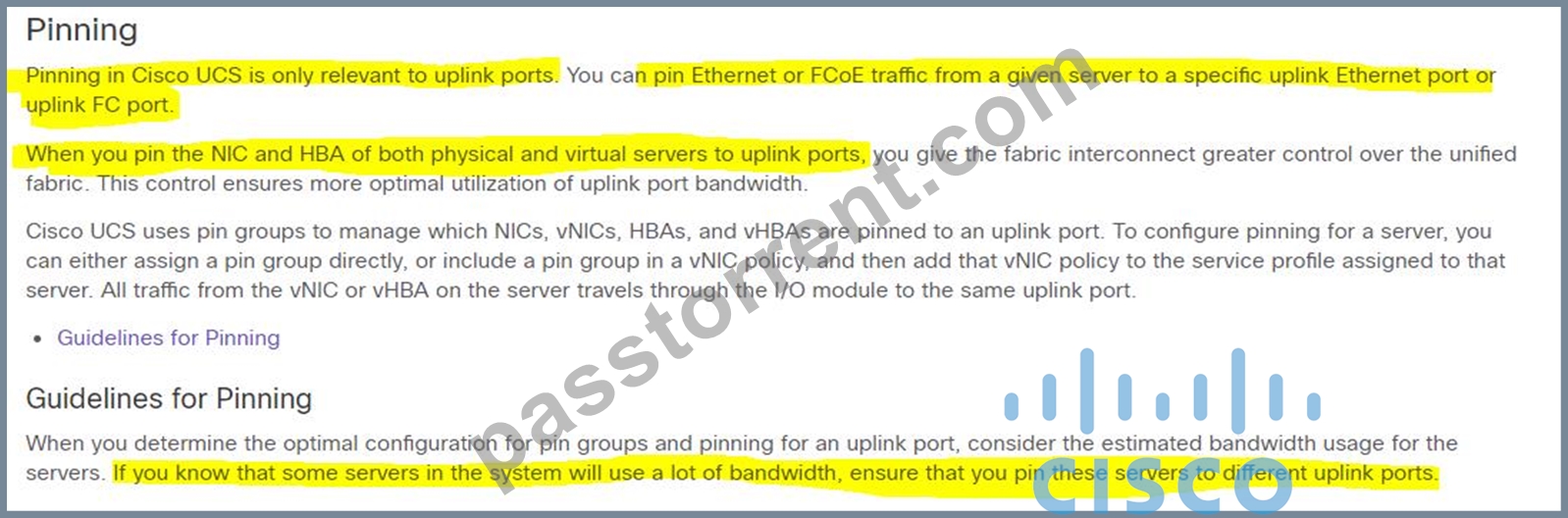

Explanation:
https://www.cisco.com/c/en/us/td/docs/unified_computing/ucs/sw/gui/config/guide/2-2/b_UCSM_GUI_Configuration_Guide_2_2/b_UCSM_GUI_Configuration_Guide_2_2_chapter_010.html#concept_7DE33CE2E37A47C6992C012D51CA37D4
