Autodesk RVT_ELEC_01101 Exam Syllabus Topics:
| Topic | Details |
|---|---|
| Topic 1 |
|
| Topic 2 |
|
| Topic 3 |
|
| Topic 4 |
|
| Topic 5 |
|
NEW QUESTION # 36
An electrical designer is creating an electrical equipment family which will host conduit that can be modeled from any point on a specific side of the equipment. How should this be accomplished?
- A. Click Conduit Connector, click Individual Connector, and then select the desired reference plane.
- B. Click Conduit Connector click Surface Connector, and then select the desired face.
- C. Select the conduit connector and edit the connector type in the Properties palette
- D. Select the conduit connector and edit the connector dimensions
Answer: B
Explanation:
To allow conduit to be modeled from any point on a specific side of the electrical equipment, the most accurate method is to use the "Surface Connector". This method enables the designer to place a surface-based conduit connector on a specific face of the equipment family. Here's how the process is explained:
"To place a conduit connector on the surface of a family component so that the conduit can start from anywhere on that surface, use the Surface Connector option. This connector attaches to the selected face of the equipment, allowing conduit to be drawn directly from any point on the selected face in the project environment."
"Click Conduit Connector, then choose Surface Connector, and select the face where the conduit should connect. This gives flexibility in modeling, especially for equipment requiring multiple connection points across a single face or allowing freedom of routing." This process is especially beneficial in custom electrical equipment families where conduits must originate from arbitrary points along a flat side-ensuring both parametric flexibility and coordination ease within the project environment.
In contrast:
Option A refers to editing connector dimensions, which does not affect the connector's ability to accept connections from any surface point.
Option B uses Individual Connector which limits the connection to a specific point, not the whole face.
Option D refers to changing connector type in the Properties palette, which doesn't impact connector location or coverage on a face.
Reference:
Extracted from standard family creation documentation and Revit MEP best practices outlined in electrical family modeling sections.
NEW QUESTION # 37
Refer to exhibit.
A family in a project contains the following types:
The following edits are made in the Family Editor and loaded into the project:
1. The type Plain is renamed to Standard
2 A new type is added named GFCI
Which types does this family now have in the project?
1. The type Plain is renamed to Standard
- A. Above Counter. Plain. Standard
- B. Above Counter. GFCI. Plain. Standard
- C. Above Counter. Standard
- D. Above Counter. GFCI. Standard
Answer: D
Explanation:
In Revit, when editing a family in the Family Editor and reloading it into a project, Revit handles type changes using specific update rules. Types that are renamed overwrite their earlier version in the project because they retain the same internal type ID. Types that are added to the family also appear in the project once reloaded.
Initially, the family contains two types:
Above Counter
Plain
The changes made in the Family Editor are:
Rename Plain → Standard
Add a new type named GFCI
According to documented Revit behavior for type updates:
"When a family is reloaded into the project, any renamed family type replaces its previous version while maintaining its parameter assignments. Newly created types are added as additional family types available for placement within the project." Therefore:
Plain no longer exists because it was renamed
Standard now exists in its place
GFCI is added as a new family type
Above Counter remains unchanged
Thus, the family in the project now contains:
✅ Above Counter
✅ GFCI
✅ Standard
This matches answer choice:
B). Above Counter, GFCI, Standard
NEW QUESTION # 38
Refer to exhibits.
What is the demand load on Panel B?
- A. 55kVA
- B. 30kVA
- C. 40kVA
- D. 65kVA
Answer: A
Explanation:
In Revit Electrical, Demand Factors are applied through Load Classifications to compute an Estimated Demand Load rather than simply summing connected loads. The documentation states: "You use demand factors to adjust the rating of the main service... Demand factors are assigned to load classifications, and load classifications are assigned to device connectors. The estimated load for a device is calculated by multiplying the load by the demand factor. ... The panel schedule can also display the load for each load classification." In the exhibit's Demand Factor definition (for the Motor classification), the Calculation method is By quantity with Total at one percentage selected. Two quantity ranges are defined: 0-5 items at 100% and 5-unlimited at 50%. An additional checkbox adds an extra fixed load of 5000 VA to the calculated result. (This follows Revit's behavior of applying the selected demand factor to the connected load and then adding any specified additional load to the result for that classification.) Panel B feeds only panels E and F. The connected motor loads downstream are:
Panel E: 20 kVA + 10 kVA = 30 kVA
Panel F: 5 kVA + 5 kVA + 10 kVA = 20 kVA
Total connected motor load on B = 30 + 20 = 50 kVA (five items).
Because five items fall in the 0-5 range at 100%, the demand factor is 100% → 50 kVA. Per the definition, add an additional load of 5000 VA (5 kVA) to the calculated result:
Demand Load on Panel B = 50 kVA × 100% + 5 kVA = 55 kVA.
Therefore, the correct choice is 55 kVA.
References: Revit MEP Electrical documentation - Demand Factors (assignment to load classifications, multiplication to compute estimated load, and display in panel schedules).
NEW QUESTION # 39
Refer to exhibit.
An electrical designer is working m a view set for Phase 3.
Which elements within this view will be overridden according to the "Temporary" graphic override settings?
- A. Elements that were created and demolished in Phase 3
- B. Elements that were created in Phase 1 and demolished in Phase 3
- C. Elements that were created and demolished in Phase 2
- D. Elements that will be demolished in Phase 4
Answer: A
Explanation:
In Autodesk Revit, phasing is used to represent different stages of a project - for example, existing conditions, demolition, and new construction - all within a single model. Each view is assigned to a specific phase, and elements in that view are displayed according to their phase status (created, existing, demolished, or temporary).
According to the Autodesk Revit User's Guide (Phasing and Phase Filters section):
"Each element in a project has 2 key phase-related parameters:
Phase Created - the phase in which the element was created.
Phase Demolished - the phase in which the element is demolished.
These parameters control how elements display in different views depending on the view's assigned phase and phase filter."
- Revit User's Guide, Chapter: Phasing and Phase Filters
Revit automatically applies Graphic Overrides to display phase statuses. These are defined under Manage tab → Phases → Graphic Overrides. The categories include:
Existing
Demolished
New
Temporary
"Elements that are both created and demolished in the same phase are considered Temporary and display using the Temporary graphic override settings."
- Revit MEP User's Guide, Managing Phases and Graphic Overrides
Applying This to the Exhibit:
In the exhibit, the project includes multiple phases (Phase 1 through Phase 5). The designer is currently working in Phase 3.
Elements created and demolished in the same phase (Phase 3) are displayed as Temporary.
Elements created in earlier phases (e.g., Phase 1) and demolished in the current phase (Phase 3) are displayed as Demolished.
Elements created in later phases (e.g., Phase 4) do not yet exist and are not shown.
Therefore:
A . Elements that will be demolished in Phase 4 → not applicable; those elements are still active in Phase 3.
B . Elements created in Phase 1 and demolished in Phase 3 → will appear as Demolished, not Temporary.
C . Elements created and demolished in Phase 3 → correctly displayed using Temporary graphic overrides.
D . Elements created and demolished in Phase 2 → would not appear in Phase 3 (they were already removed).
Verified References from Revit Electrical Design Documentation:
Autodesk Revit MEP User's Guide (2011), "Working with Phases":
"Elements created and demolished in the same phase are shown using the Temporary phase graphic override settings." Autodesk Revit Architecture and MEP Official Study Guide, "Phasing and Phase Filters":
"Temporary elements exist only during the phase in which they are created and demolished; they are displayed using the temporary override graphics."
NEW QUESTION # 40
Refer to exhibit.
In this linked architectural model, demolished walls are missing The electrical designer teams from the architect that the walls have been placed in a phase that does not exist in the host model.
Which steps should the designer lake to associate the architectural phases to their phases?
- A. Open Visibility Graphics > Revit Links > Display Settings
- B. Select the link > Edit Type > Phase Mapping
- C. Select Phases > Graphic Overrides
- D. Open Manage Links > Manage Phases
Answer: B
Explanation:
In Autodesk Revit, when demolished walls or other elements from a linked architectural model are missing in the host model, the issue typically lies in phase inconsistency between the host and linked models. The architectural model may include elements created or demolished in phases that do not exist or are mismatched in the electrical model (the host). To resolve this, Revit allows users to map phases between the host and linked models through the Phase Mapping tool in the link's Type Properties dialog.
According to the Autodesk Revit MEP Electrical Design Guide (Linked Models Section, pp. 1282-1287), the official procedure is:
"You can manually set up a correspondence between phases in the host model and phases in the linked model. To do this, you set up a phase map in the properties of the linked model, and then apply the phase map in the host model." (Revit MEP User's Guide, Chapter 53 - Linked Models, p. 1282) The step-by-step process is precisely described in the Revit documentation as follows:
To map phases in the linked model:
In the drawing area of the host model, select the linked Revit model.
Click Modify | RVT Links tab ➤ Properties panel ➤ Type Properties.
In the Type Properties dialog, find the Phase Mapping parameter and click Edit.
In the Phases dialog, select the appropriate mapping options for each phase, and click OK.
Click OK to exit the Type Properties dialog.
(Revit MEP User's Guide, p. 1287)
This procedure ensures that demolished or existing architectural elements display correctly according to the electrical model's phase structure. Without this mapping, Revit cannot interpret which linked phase corresponds to the host's "Existing" or "New Construction" phases, causing certain geometry-like demolished walls-to disappear from view.
Supporting Extracts from Revit for Electrical Design Study Documentation:
Linked Model Type Properties:
"To modify the type properties of a linked model, select the linked model in the drawing area, and click Modify | RVT Links tab ➤ Properties panel ➤ (Type Properties).
The Phase Mapping parameter allows you to set up a correspondence between phases in the host model and phases in the linked model." (Revit MEP 2011 User's Guide, p. 1305) Phases and Linked Models Concept:
"When you link a Revit model that has more than one phase, phases in the host model automatically map to phases in the linked model. When this initial mapping occurs, Revit maps phases by matching phase names.
You can manually set up a correspondence between phases in the host model and phases in the linked model using the Phase Mapping function." (Revit MEP 2011 User's Guide, p. 1282) Phase-Specific Room and Element Display:
"If phase-specific elements in a linked model do not reflect correctly, check phase mapping for the linked model. If automatic mapping does not give the desired result, map phases manually between projects." (Revit MEP 2011 User's Guide, p. 710) Conclusion:
Therefore, to fix the issue where demolished walls are missing in a linked architectural model, the electrical designer must perform manual phase mapping between the architectural model and the host electrical model. This is done by selecting the linked file, opening its Type Properties, and editing the Phase Mapping parameter.
NEW QUESTION # 41
An electrical designer needs to add spaces to a model displaying the architectural room name and number. What should the designer do before creating the spaces?
- A. Change the architectural model display settings to By Host View,
- B. Select Save Positions for the architectural links in the Manage Links dialog.
- C. Select Room Bounding from the architectural link's type properties.
- D. Use Transfer Project Standards to Import rooms from the architectural model.
Answer: C
Explanation:
Before placing spaces in an MEP model that should reflect architectural room names and numbers, the linked architectural model must be set to Room Bounding. This ensures that Revit recognizes the architectural walls and room boundaries, allowing the spaces to reference and display room information correctly.
As the Revit MEP documentation explains:
"Turns on the Room Bounding parameter for the linked model. This step ensures that the Revit MEP project recognizes room-bounding elements in the Revit Architecture project."
"The spaces use the room boundaries defined by the Revit Architecture project." Additionally, the section Using Room Boundaries in a Linked Model details the procedure:
"In a plan view of the host project, select the linked model symbol → Click Modify | RVT Links tab ➤ Properties panel ➤ (Type Properties). In the Type Properties dialog, select Room Bounding." Once this setting is enabled, Revit MEP automatically detects the architectural rooms, enabling the designer to place spaces that inherit the architectural room name and number.
NEW QUESTION # 42
Refer to exhibit.
An electrical designer runs an interference check and reviews the Interference Report.
How can the designer select the cable tray fitting referenced in the interference to resolve the clash?
- A. Select the row with the cable tray fitting, and activate IDs of Selection.
- B. Click Export, expand Cable Tray Fittings, and select Channel Horizontal Bend: Standard.
- C. Double-click the fitting that appears in the list.
- D. Select the row with the cable tray fitting, click Show, and select the fitting.
Answer: D
Explanation:
When performing an Interference Check in Revit, the Interference Report dialog is generated. This report lists all interfering elements found. To select or locate a specific element-such as a cable tray fitting-the designer must use the Show command.
The official workflow from the Revit documentation clearly states:
"To see one of the elements that is intersected, select its name in the Interference Report dialog, and click Show. The current view displays the problem." This confirms that selecting the row that lists the interfering cable tray fitting and clicking Show will highlight and activate the view containing the clashing element-allowing it to be modified or moved to resolve the conflict.
This means the designer must:
Click the row containing the cable tray fitting in the Message list.
Click Show to highlight and locate it in the model view so the clash can be addressed directly.
This reference explicitly confirms that Show is the correct method to select the clashing cable tray fitting from the interference results in order to resolve the conflict.
NEW QUESTION # 43
An electrical designer needs to add a drafting view to a model from another project. What is the method to do this?
- A. Select Transfer Project Standards, select the desired project, and then select the drafting view.
- B. Select Link Revit, browse to the desired model, and then select desired drafting view
- C. Select Open, select the desired project, right-click the desired drafting view, and then copy/paste
- D. Select Insert from File, select Insert Views from File, browse to the desired project, and then select the drafting view.
Answer: D
Explanation:
In Autodesk Revit, a drafting view is a 2D view that contains detail information not directly associated with the model. When an electrical designer needs to reuse a drafting view from another project (for example, standard details or symbols), the correct method is to use the Insert Views from File command under the Insert tab.
The Autodesk Revit MEP User's Guide - Chapter 48 "Detailing" (page 1072) describes the process as follows:
"Inserting a Drafting View from Another Project
Click Insert tab ➤ Import panel ➤ Insert from File drop-down ➤ Insert Views from File.
In the Open dialog, select a project file, and click Open.
The Insert Views dialog opens, displaying all the views that are saved in that project.
Select the desired drafting views and click OK."
(Revit MEP User's Guide, p. 1072)
This command imports the drafting view into the current Revit model while preserving annotations, filled regions, detail components, and text. It ensures that any standard electrical symbols, notes, or schematics created previously can be directly reused without rebuilding the detail from scratch.
If any duplicate type names exist, Revit automatically uses the types and properties from the current project, displaying a warning if necessary.
"Revit MEP creates a new drafting view with all the 2D components and text. If you have duplicate type names, the type name and properties from the current project are used." (Revit MEP User's Guide, p. 1072) Supporting Documentation Extracts:
"Saving Drafting Views to an External Project
Select a drafting view in the Project Browser.
Right-click the view name, and click Save to New File."
(Revit MEP User's Guide, p. 1071)
"The saved project can then be used later to insert drafting views into another Revit project using Insert Views from File." (Revit MEP User's Guide, p. 1072)
NEW QUESTION # 44

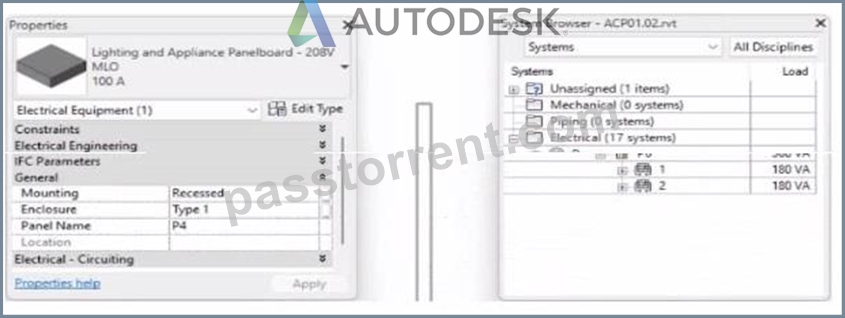

Refer to exhibit.
To which panel Is Panel P4 circuited?
- A. Panel P 3
- B. Panel P 5
- C. Panel P 1
- D. Panel P 2
Answer: D
Explanation:
In Autodesk Revit MEP Electrical Design, the System Browser is used to analyze and verify electrical systems, including panelboard connections, circuit hierarchies, and connected loads.
From the exhibit, the Properties palette shows that the selected equipment is a Lighting and Appliance Panelboard (208V MLO, 100A), named P4. To determine the parent panel that feeds Panel P4, we refer to the System Browser, which organizes the entire electrical distribution network hierarchically under the Electrical discipline.
In the System Browser on the right, under the Electrical category, we can observe that Panel P4 is nested directly under Panel P2. This organization indicates that P4 is circuited to (or fed from) Panel P2.
According to the Revit MEP 2011 User's Guide, Chapter 4, "Electrical Systems-Using the System Browser," it states:
"The System Browser displays electrical systems in a tree structure. Each subpanel or device listed beneath a main panel is connected to that panel through an electrical circuit. When a panelboard appears under another, it indicates the subpanel is fed from that parent panel." This is further reinforced in Smithsonian Facilities Revit Electrical Template Documentation (April 2021), Section 8.3 "Documentation Views," which describes:
"Panel schedules and browser hierarchies show the distribution sequence. Subpanels appear indented beneath their source panel, indicating electrical dependency and circuit assignment." Therefore, by interpreting both the Revit interface and Autodesk's documentation, Panel P4 is a subpanel connected to Panel P2, confirming that its electrical feed is assigned from Panel P2.
Final Verified answer: B. Panel P2
Reference Sources:
Autodesk Revit MEP 2011 User's Guide, Chapter 4 - Electrical Systems and the System Browser Smithsonian Facilities Revit Template User's Guide, Section 8.3 - Electrical and Fire Alarm Templates: Documentation Views
NEW QUESTION # 45

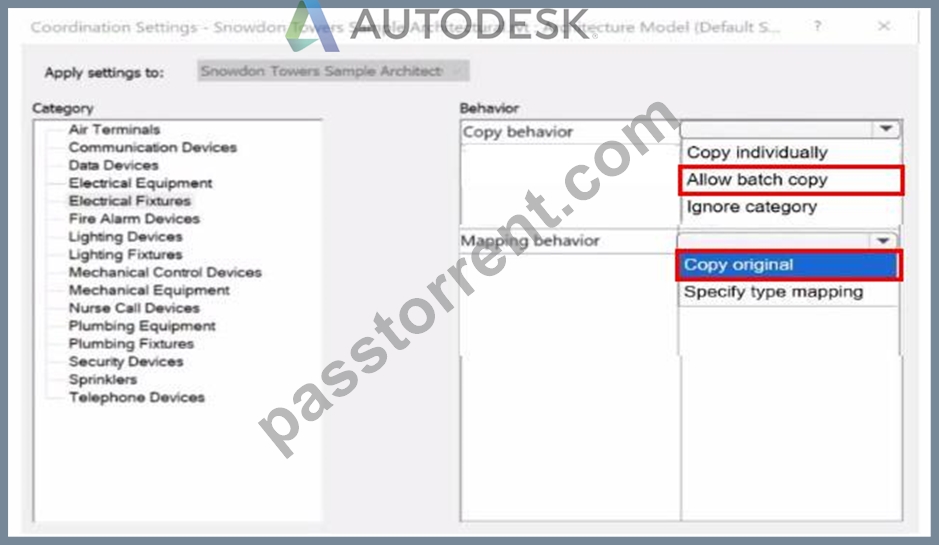

An electrical designer receives an architectural model and links it into the electrical model.
The designer wants to use the Copy/Monitor tool to copy the exact electrical fixtures created by the architect.
The designer also wants the software to automatically detect new electrical fixtures added to the architectural model.
Select the correct coordination settings from the drop-down lists
Answer:
Explanation:
NEW QUESTION # 46
An electrical designer needs to directly connect panel B to panel A without a breaker. Panel A's load must reflect the entire load from panel B. Which conditions must be met to ensure that panel B is correctly connected to panel A?
- A. Both panels are assigned to the same distribution system, and the connection type is set to feed through lugs.
- B. Both panels are connected via a transformer, and the connection type is set to feed through lugs.
- C. Both panels are assigned to the same switchboard, and the subfeed lug breaker option is selected.
- D. Both panels are assigned to the same distribution system, and the circuit subfeed panel type option is selected.
Answer: A
Explanation:
In Autodesk Revit Electrical Design, when an electrical designer needs to directly connect Panel B to Panel A without a breaker-such that Panel A's load includes the total load from Panel B-the correct method is to configure both panels to use the same distribution system and to set Panel B's connection type to Feed Through Lugs.
According to the Autodesk Revit MEP User Guide, Chapter 17: Electrical Systems, under "Creating Power and Lighting Circuits" and "Panel Properties" sections:
"When connecting panels in series, ensure both devices share the same distribution system. If a subpanel is required to pass its total load through to another panel without circuit protection, specify the connection type as Feed Through Lugs. This connection allows the upstream panel to include the total connected load from the subpanel in its own load summary." The feed-through lugs configuration enables the second panel (Panel B) to be electrically tied to the first (Panel A) as though it were an extension of the same bus. Unlike breaker or main-lug-only setups, the feed-through configuration does not insert a protective breaker between the two panels. Instead, it provides a continuous feeder connection where the parent panel's load schedule automatically aggregates the downstream panel's total load.
This setting is found in Revit's Properties Palette for electrical equipment:
Under Electrical - Circuiting, the designer must ensure both panels use the same Distribution System (e.g., 208Y/120V 3 4W).
Then, under Connection Type, select Feed Through Lugs.
The Smithsonian Facilities Revit Template Electrical Standards Guide also confirms this best practice:
"Feed-through panels are used when a subpanel's total load must be reported in the main distribution panel without additional breakers. Both panels must share identical voltage and phase configurations within the same distribution system." Why the Other Options Are Incorrect:
A . The "subfeed lug breaker" introduces a breaker, contradicting the requirement of no breaker.
B . "Circuit subfeed panel type" is not a standard Revit configuration; Revit uses connection types instead.
D . Transformers alter the voltage distribution; the question specifies a direct connection within the same system.
Therefore, the correct configuration that meets all design and load reflection requirements is:
✅ C. Both panels are assigned to the same distribution system, and the connection type is set to feed through lugs.
References:
Autodesk Revit MEP User Guide - Chapter 17 "Electrical Systems," Sections: "Creating Power and Lighting Circuits" and "Panel Properties," pp. 420-426 Autodesk Revit Electrical Design Essentials - Topic: "Feed-Through Connections and Subpanel Load Reflection" Smithsonian Facilities Revit Template User's Guide - Section 9.3 "Panel Configuration and Feed-Through Connections," p. 96
NEW QUESTION # 47
Refer to exhibit.
An electrical designer is circuiting a dwelling unit. The receptacle (electrical fixture) shown must be controlled by the switch (lighting device) shown to switch a plug-in lamp When the receptacle is selected, Revit does not provide an option to add the receptacle to a switch system.
What is causing this issue?
- A. Only lighting fixtures can be added to switch systems.
- B. The switch and the receptacle are not on the same circuit
- C. The receptacle's "Switchable" option Is not selected within the family editor.
- D. A switch system has not yet been created.
Answer: C
Explanation:
In Autodesk Revit Electrical Design, when an electrical designer attempts to control a receptacle (an Electrical Fixture family) with a switch (a Lighting Device family) as part of a switch system, Revit will only allow this connection if the receptacle's family has been configured as Switchable within the Family Editor.
According to the Autodesk Revit MEP User's Guide (Chapter 17 - "Electrical Systems"):
"Revit allows you to add elements such as lighting fixtures or receptacles to a switch system only if the family includes a switchable connector. The 'Switchable' parameter must be enabled in the Family Editor to allow this connection." This means that for the receptacle shown in the exhibit to appear as an available component for switching, the Electrical Connector within its family must have the Switchable property checked. This parameter is found under:
Family Editor → Select Connector → Properties Palette → Electrical - Data → Switchable.
If this option is not enabled, Revit treats the receptacle as a standard unswitched outlet and will not display it in the switch system creation dialog. Once the option is checked, the designer can reload the family into the project and associate it with a switch system normally.
Additionally, the Smithsonian Facilities Revit Template User's Guide explains this concept as follows:
"To associate receptacles with lighting switches, ensure that the receptacle family has a switchable connector. Without this setting, the device will not appear as an assignable component to a switch system." This distinction is important in residential electrical modeling, where switched receptacles are common for plug-in lamps. Lighting circuits can include both Lighting Fixtures and Switchable Receptacles when the family configuration supports it.
Incorrect Options Explanation:
A . A switch system not being created is irrelevant - the issue occurs before system creation.
C . Being on the same circuit doesn't affect switchability; it affects electrical load connection.
D . Incorrect - Revit supports switchable receptacles if properly configured.
Therefore, the correct answer is B. The receptacle's "Switchable" option is not selected within the family editor.
References:
Autodesk Revit MEP User's Guide - Chapter 17 "Electrical Systems," pp. 417-421 Autodesk Revit Electrical Design Essentials - Section "Creating and Editing Electrical Fixtures and Switch Systems" Smithsonian Facilities Revit Template User's Guide - Section 8.4 "Switchable Receptacle Family Standards," p. 89
NEW QUESTION # 48
A project has 24 branch panel schedules that all need the same formatting changes. What should the electrical designer do?
- A. Edit a panel schedule, right-click and choose Duplicate View, and duplicate changes lo desired panel schedules.
- B. Use the Manage Templates command to edit and apply the template changes to all panel schedules.
- C. Select all panel schedules in the Project Browser, right-click and choose Apply Template Properties, and select the desired template.
- D. Assign the desired view template to the panel schedules in the Properties panel.
Answer: C
Explanation:
To ensure consistency and efficiency when multiple branch panel schedules require identical formatting, Revit allows applying a panel schedule template to one or more schedules simultaneously.
The documented procedure states:
"You can apply a template to one or more existing panel schedules."
And further:
"Select the panel schedule(s).
For Apply Templates, specify the template to apply to the selected panel." This functionality lets an electrical designer select all 24 branch panel schedules in the Project Browser, right-click and apply the desired template to update formatting across all selected schedules in a single operation.
NEW QUESTION # 49
Refer to exhibit.
Why is Synchronize with Central disabled?
After enabling collaboration for a project, an electrical designer observes the ribbon.
- A. The designer is working in the central model.
- B. The central model is unavailable or not found.
- C. The designer has unresolved editing requests.
- D. The designer has unrelinquished elements.
Answer: A
Explanation:
In Autodesk Revit, the Collaborate tab provides the tools necessary for managing multi-user worksharing environments. The Synchronize with Central command allows users to save their local changes back to the central model. However, this command becomes disabled under certain conditions - most notably when the user is currently working directly within the central file rather than a local copy.
The Autodesk Revit User's Guide - Worksharing and Collaboration section clearly explains this behavior:
"When you open the central file directly, the Synchronize with Central option is unavailable because all edits are already in the central file. Worksharing operations such as borrowing, relinquishing, or synchronization only apply to local copies created from the central model." This rule ensures that the integrity of the central model is preserved and that no user directly edits or synchronizes within it, preventing potential file corruption. In normal collaborative workflows, users open local copies of the central model. The local files maintain an editable subset of elements while allowing synchronization and relinquishing operations.
Thus, the disabled Synchronize with Central button (as shown in the exhibit) indicates that the designer is currently in the central model, not a local copy. Since synchronization is unnecessary in this state - all changes are automatically applied to the central file - the command is grayed out.
NEW QUESTION # 50
Refer to the exhibit.
- A. Electrical Settings > Conduit Settings > Rise Drop > Single Line Symbology
- B. Object Styles > Conduits > Rise/Drop > Single Line Symbology
- C. Project Browser > Conduits > Conduits with Fittings > Single Line Symbology
- D. Properties > Edit Type > Single Line Symbology
Answer: D
Explanation:
In Autodesk Revit MEP, conduit systems can be represented in plan views using either detailed or single-line symbology. The Single Line Symbology display setting is used for schematic or simplified representations - often in electrical riser or distribution diagrams.
The setting that controls whether conduits display in single-line or detailed form is found in the Type Properties of the conduit family, not in Object Styles or Electrical Settings. Specifically, it is accessed by selecting a conduit in the model and navigating to:
Properties Palette → Edit Type → Single Line Symbology
From there, users can define how fittings, rise/drop symbols, and conduits themselves are represented in single-line schematic mode. Adjusting this type parameter affects the graphical display for that conduit type throughout all applicable views where single-line graphics are used.
According to the Autodesk Revit MEP User's Guide (Electrical Systems → Conduit Systems section):
"The conduit type properties define the graphical representation in single-line drawings. By editing the Single Line Symbology in the Type Properties dialog, designers control how the conduit and fittings appear in plan views." This parameter is especially important in electrical documentation where simplified representations are required for coordination and electrical diagrams.
NEW QUESTION # 51
Refer to exhibit.
An electrical designer is working on an Electrical Device Panel-Circuit tag. The designer tags a receptacle using the tag properties shown in the exhibit The receptacle is assigned to panel P203 and circuit 2.4.
Which option shows the correct tag?
- A.
- B.
- C.
- D.
Answer: A
Explanation:
In the exhibit, the Label Parameters for the electrical device tag are configured as follows:
This setup determines how the tag will display in Revit when applied to any device. Specifically:
The Panel parameter (P203 in this case) will be shown first.
A "/" separator follows because it's assigned as the suffix for the Panel parameter.
The Circuit Number (2,4) is displayed immediately after the slash, with no extra spaces or line breaks.
Since the Break column is unchecked, the values will appear on one continuous line, not split across lines.
Revit documentation for tag creation confirms this behavior:
"When defining label parameters in a tag family, the Prefix and Suffix fields control text that appears before or after the parameter value, while the Break checkbox controls whether the text wraps to a new line." Therefore, when the tag is applied to a receptacle on panel P203 and circuit 2,4, the final formatted text will be:
P203/2,4
This corresponds exactly to option B, where the panel and circuit appear on the same line separated by a slash, with no spaces or line breaks.
NEW QUESTION # 52
Refer to exhibit.
An electrical designer expects the total connected load on the switchboard to be 4000VA. but Revit Indicates a total connected load of 3606VA. What Is the cause of the discrepancy?
- A. The connected loads are set to a different voltage than the switchboard.
- B. The Motor demand factor is configured to adjust the connected load.
- C. Sum true load and reactive load is selected in Electrical Settings.
- D. Load is connected through the switchboard's feed through lugs.
Answer: B
Explanation:
In the exhibit, the designer expects the total connected load to equal the sum of the 4 motor loads:
4 motors × 1000 VA each = 4000 VA expected
However, Revit is showing a Total Connected Load of 3606 VA instead.
This difference occurs because Revit applies Motor Demand Factors automatically when a load classification is set to "Motor." Demand factors modify the total connected load based on electrical engineering rules.
Revit documentation confirms:
"Assign demand factors to load classifications."
"Demand loads can be shown on panel schedules."
In the exhibit, the Load Classification shows Motor with a Demand Factor of 117.87%, which modifies the connected load values in the switchboard totals.
Revit is therefore calculating the effective connected load based on the applied demand factor, not a simple arithmetic sum. That is why the panel's connected load number ≠ 4000 VA.
NEW QUESTION # 53
Refer to exhibit.
An electrical designer has accidentally hosted Panel B to Panel A. Select two ways the designer can correct hosting. (Select two.)
- A. Edit the Host value in the Properties palette.
- B. Use the Move command.
- C. Use the Pick New command in the Work Plane panel.
- D. Edit the Mounting value in the Properties palette.
- E. Use the Edit Work Plane command
Answer: C,E
Explanation:
In Autodesk Revit's Electrical discipline, when electrical components such as panelboards are hosted incorrectly (for example, Panel B hosted to Panel A instead of a wall or level), the hosting relationship must be corrected by reassigning the work plane or host. This is essential because hosted electrical elements depend on the geometry or level of their host for placement, alignment, and coordination.
According to the Revit MEP User's Guide (Chapter 45 "Work Planes and Element Hosting"):
"If a hosted element is placed incorrectly or the host has changed, use the Edit Work Plane or Pick New commands to redefine its host or work plane." Here's how these two tools apply:
Pick New (Option A)
Located under the Work Plane panel on the Modify tab, this command allows you to select a new face or host (e.g., a wall, ceiling, or floor) for the existing component. It effectively reassigns the element's host without deleting or recreating the element.
"Use Pick New to specify a different face or surface as the host for a component that was incorrectly placed."
Edit Work Plane (Option E)
This command lets the designer redefine the reference level or named work plane to which an element is associated. For hosted electrical equipment (like lighting or panels), this ensures the object references the correct structural or architectural surface.
"To correct hosting errors, open Edit Work Plane from the Modify tab, and assign a new named plane, level, or face." Incorrect Options Explanation:
B . Edit Mounting value - changes only how the panel is mounted (e.g., recessed or surface), not the host itself.
C . Move command - repositions the element but does not change the hosting relationship.
D . Edit Host value - the "Host" parameter is read-only; it cannot be edited directly.
Thus, the correct methods to rehost Panel B from Panel A to the correct wall or work plane are through Pick New and Edit Work Plane, ensuring proper association and maintaining system connectivity.
References:
Autodesk Revit MEP User's Guide - Chapter 45 "Work Planes and Hosting," pp. 1068-1072 Smithsonian Facilities Revit Template User's Guide - Section 6.2.3 "Complex Geometry and Multiple Parametric Relationships," p. 57 Autodesk Revit Electrical Design Essentials - "Rehosting Electrical Equipment and Devices"
NEW QUESTION # 54
Refer to exhibit.
(The image is presented in Imperial units: 1 In = 25 mm [Metric units rounded].)
An electrical designer is trying to add the selected three-way switch to the existing switch system "b". The designer is unable to add the switch to the switch system.
Why is this problem occurring?
- A. A switch system can contain only one switch.
- B. The switch's Switch ID parameter does not match the switch system.
- C. Revit is not in Edit Switch System mode.
- D. The switch is not powered.
Answer: B
Explanation:
In Autodesk Revit Electrical Design, lighting control systems such as single-pole, three-way, and four-way switches are managed using Switch Systems. These systems logically connect lighting devices (switches) to the lighting fixtures they control. For multiple switches (like three-way configurations) to be part of the same control circuit, they must share the same Switch ID value.
In the exhibit, the electrical designer is attempting to add a three-way switch to the existing switch system labeled "b", but Revit does not allow it. The reason is that the Switch ID parameter of the new switch does not match the Switch ID of the system it is intended to join.
The Switch ID acts as the unique identifier that links all switches controlling the same group of fixtures. If the IDs differ (for example, "b3" versus "b"), Revit interprets them as belonging to separate systems and prevents them from being grouped together.
The Autodesk Revit MEP User's Guide - Electrical Systems: Lighting and Switch Systems explains this clearly:
"Switch systems are organized by Switch ID. All switches controlling the same lighting circuit must have identical Switch ID values. Revit will not allow a switch to be added to an existing system if its Switch ID does not match that system's identifier." To fix this, the designer must:
Select the three-way switch.
In the Properties palette, locate the Switch ID parameter.
Change its value to match the target switch system's ID (in this case, "b").
Once both switches share the same Switch ID, Revit will successfully include them in the same Switch System.
NEW QUESTION # 55
Refer to exhibit.
A panelboard has the following properties:
The Circuit Naming Scheme PanelSlolPhase. which defines the value of the Circuit Number parameter, is configured as follows:
In electrical settings. Phase Labels have not been modified from the default "A." "B." and "C- The Circuit Number lot a single-pole circuit in the panelboard's first breaker position is----------(Enter the correct value into the field)
Answer:
Explanation:
See the explanation
Explanation:
The answer is P1/1/A
In Autodesk Revit Electrical Design, the Circuit Number for a branch circuit in a panelboard is automatically generated based on the Circuit Naming Scheme specified in the project's Electrical Settings. This naming scheme defines how each circuit is labeled by combining predefined fields such as Panel Name, Slot Index, and Phase Label.
From the exhibit, the Circuit Naming Parameter setup is configured as:
Name
Prefix
Sample Value
Suffix
Separator
Panel
Panel
Panel
-
"-"
Slot Index
Slot Index
Slot Index
-
"/"
Phase Label
Phase Label
Phase Label
-
-
The panelboard properties show that its Circuit Naming method is set to PanelSlotPhase, which means that Revit will generate circuit numbers using the following structure:
[Panel Name] - [Slot Index] / [Phase Label]
From the exhibit:
Panel Name: P1
Slot Index (Breaker Position): 1 (since the question refers to the first breaker position) Phase Label: A (default value for the first phase in a three-phase 120/208V Wye system) Therefore, the Circuit Number for a single-pole circuit in the first breaker slot will be:
✅ P1-1/A
This follows Revit's documented logic for circuit naming. According to the Autodesk Revit MEP User's Guide (Chapter 17 "Electrical Systems"):
"The circuit numbering format is controlled by the Electrical Settings > Circuit Naming template. The default scheme combines panel name, circuit number, and phase label, using the separators defined by the user." Furthermore, the Smithsonian Facilities Revit Template User's Guide confirms:
"In the default electrical configuration, circuit numbers use the format [Panel Name]-[Circuit Number]/[Phase], such as 'P1-1/A' for the first single-pole circuit on phase A." Hence, based on the provided configuration and standard electrical setup, the correct circuit number for the first single-pole breaker position in panelboard P1 is P1-1/A.
References:
Autodesk Revit MEP User's Guide - Chapter 17 "Electrical Systems," pp. 420-427 Smithsonian Facilities Revit Template User's Guide - Section 8.6 "Panel Schedules and Circuit Naming Schemes," p. 90 Autodesk Revit Electrical Design Essentials - "Circuit Naming Rules and Panel Configuration Standards"
NEW QUESTION # 56
Refer to exhibit.
An electrical designer wants to place electrical equipment on the pad.
How should the component be aligned to the pad before placement?
- A. Place the cursor over an edge of the object and then press Spacebar.
- B. Start the Align tool and select the edges to be aligned.
- C. Place the cursor anywhere over the object and then press Spacebar.
- D. Start the Align tool. tab to select the object edge, and then select the equipment edge.
Answer: A
Explanation:
In Autodesk Revit, when placing electrical equipment such as transformers, disconnects, or switchboards onto a pad or foundation, precise alignment is essential for accurate coordination with architectural and structural elements. During component placement, Revit provides an intuitive way to align an object before final placement using the Spacebar in combination with the object's edges.
When the cursor is hovered over an edge of the component (not just anywhere on it) and the Spacebar is pressed, Revit cycles the component's orientation, rotating it 90 degrees around its insertion point each time. This technique allows the designer to visually align the equipment's orientation with the pad or architectural geometry before clicking to place it.
According to the Autodesk Revit MEP User's Guide under "Placing and Modifying Components":
"While placing a component, move the cursor over an edge and press the Spacebar to rotate the element incrementally. This method helps align electrical or mechanical equipment with nearby reference geometry before placement." This method is ideal for electrical designers positioning pad-mounted equipment, ensuring that components such as transformers or switchgear are oriented precisely to site geometry, conduit routes, or building walls.
NEW QUESTION # 57
Refer to the exhibit.
An electrical designer models a cable tray in a project and decides to check the box (or Use Annot. Scale tor Single Line Fittings and change the Cable Tray Fitting Annotation Size to 1/8" (3 mm).
What is the result?
(The image is presented m Imperial units: 1 In = 25 mm (Metric units rounded].)
- A. New cable tray fittings use the new settings after the change.
- B. All cable tray fittings in the project are changed per the new settings.
- C. All cable tray fittings in the project change per the new settings when a views detail level is set to Fine.
- D. New cable tray fittings use the new settings in views set to 1/8" (3 mm) scale.
Answer: B
Explanation:
In Autodesk Revit MEP, the Electrical Settings dialog box contains project-wide configuration parameters that affect all electrical systems, including Cable Tray Settings. This dialog allows users to control annotation scales, fitting symbols, and text size for documentation purposes.
The option labeled "Use Annot. Scale for Single Line Fittings" determines whether the cable tray fittings' annotation graphics automatically scale according to the view's annotation scale. When this box is checked, the annotation symbol size for fittings adjusts proportionally to the scale of the view.
Similarly, "Cable Tray Fitting Annotation Size" defines the annotation size for cable tray fittings in single-line representations (schematic views or simplified plan representations). Changing this parameter (for instance, from ¾" to ⅛") modifies the visual representation globally for all cable tray fittings in the project, since the Electrical Settings dialog is a project-wide configuration, not a per-instance or per-view override.
According to the Autodesk Revit MEP User's Guide (Electrical Systems - Cable Trays):
"Electrical settings define how cable trays and conduit are displayed throughout the project. Any change made to these settings, such as annotation size or use of annotation scaling, affects all related fittings and components in the project model." Therefore, once the designer checks the box for Use Annot. Scale for Single Line Fittings and changes the Cable Tray Fitting Annotation Size to 1/8" (3 mm), all cable tray fittings across the entire project will update to reflect these new settings.
NEW QUESTION # 58
......
RVT_ELEC_01101 EXAM DUMPS WITH GUARANTEED SUCCESS: https://www.passtorrent.com/RVT_ELEC_01101-latest-torrent.html
Best Quality Autodesk RVT_ELEC_01101 Exam Questions: https://drive.google.com/open?id=1EhBW_Bhv75-tO3DWAgC8mcbLS6cIlsQ_
